Stainless Steel Manual Hydraulic Pallet Jack

1) Galvanizing fully-sealed pump, double tandem nylon wheels 2) 210 steering arc, small turning radius, fork lowering speed is controllable 3) Entry/exit roller, easy to enter into the pallet, equipment with over-load valve, 3 position hand control, easy to use. 4) Heavy-duty steel adjustable push rods/steel c-channel/handle base. 5) Rebuildable pump, Handle bolt designed for […]

Share:

Introduction

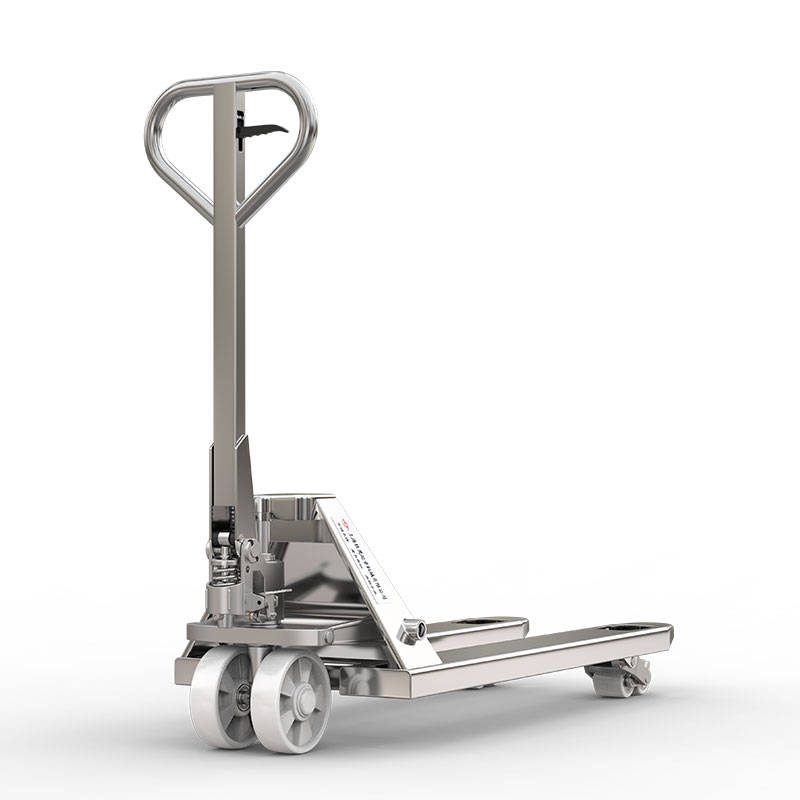

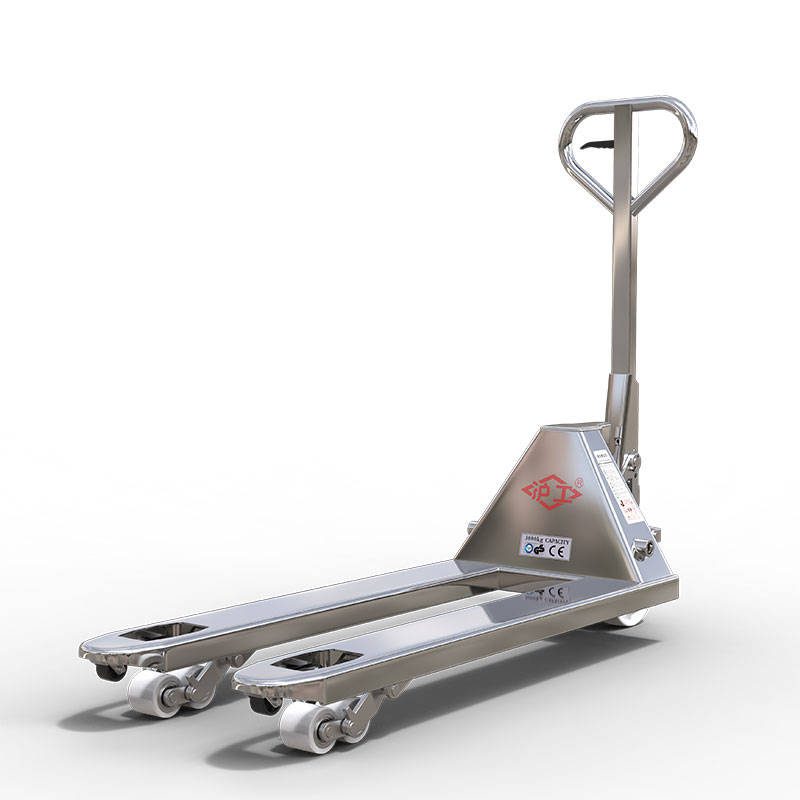

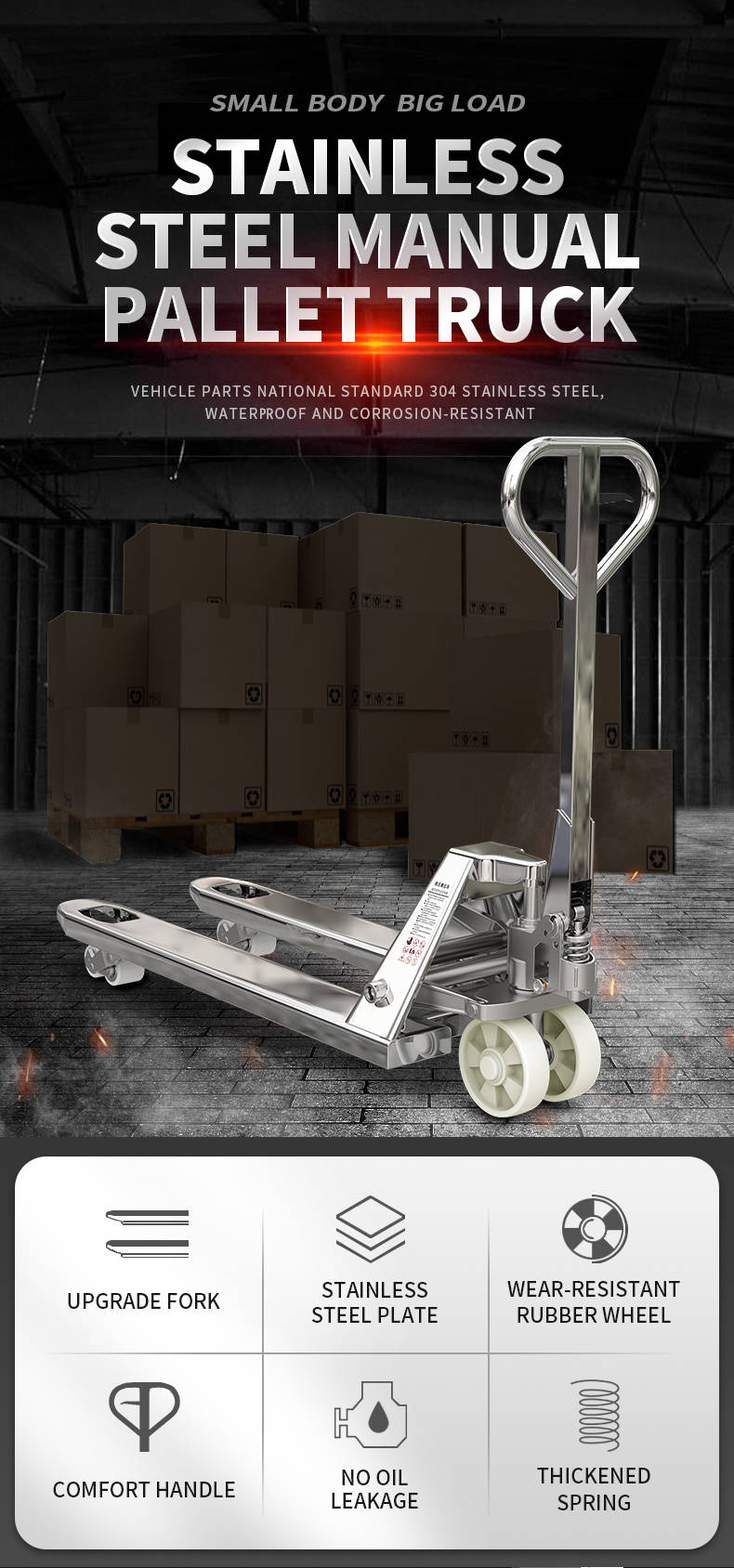

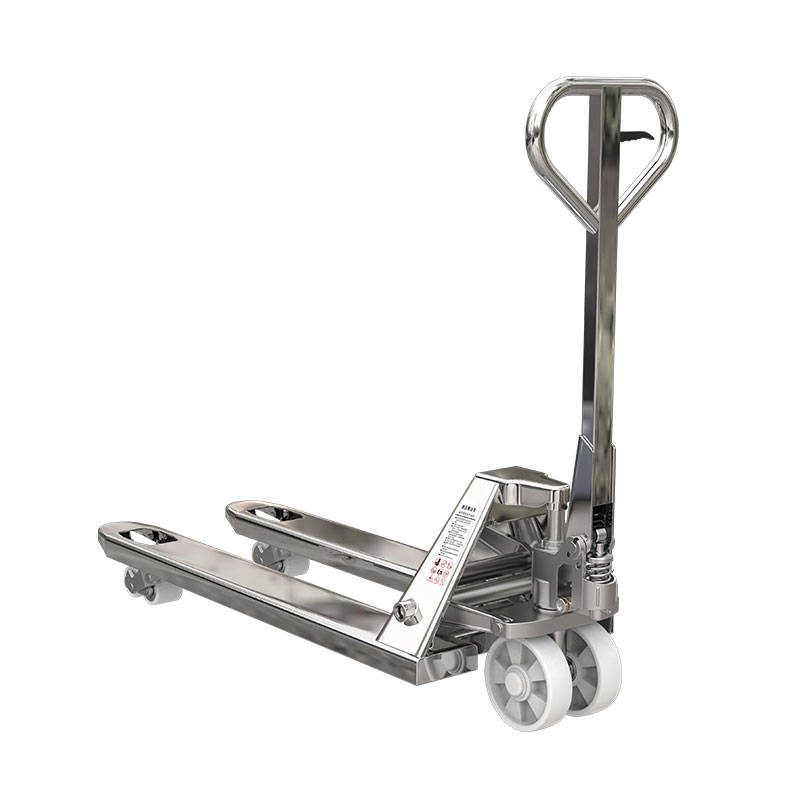

Stainless Steel Manual Hydraulic Pallet Jack

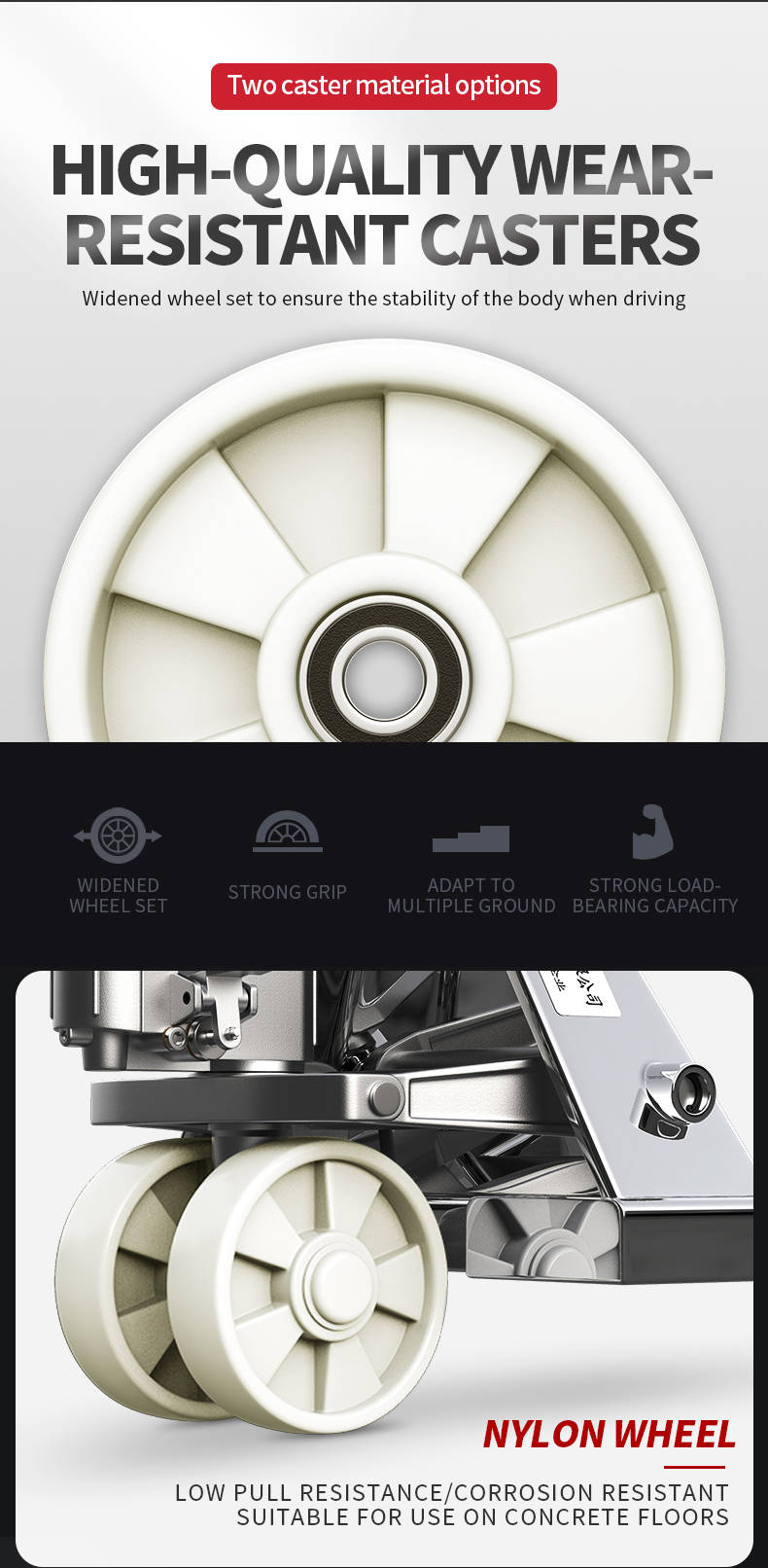

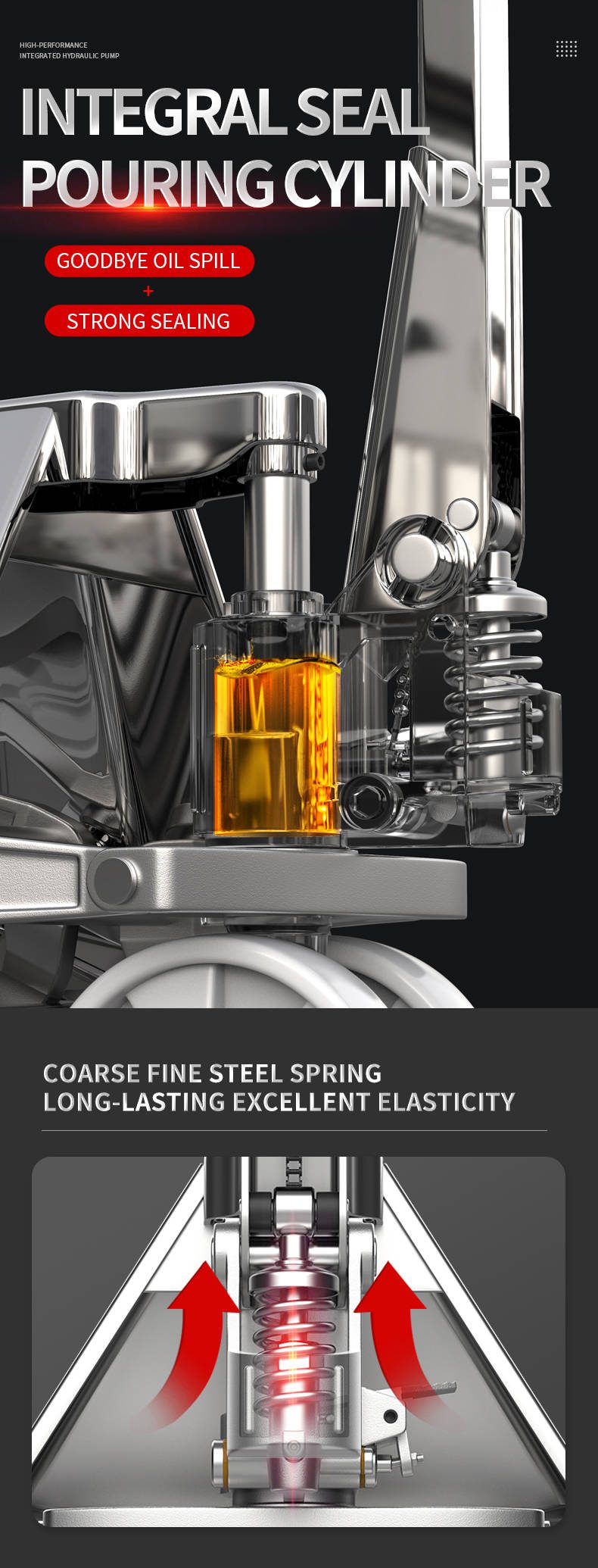

1) Galvanizing fully-sealed pump, double tandem nylon wheels

2) 210 steering arc, small turning radius, fork lowering speed is controllable

3) Entry/exit roller, easy to enter into the pallet, equipment with over-load valve, 3 position hand control, easy to use.

4) Heavy-duty steel adjustable push rods/steel c-channel/handle base.

5) Rebuildable pump, Handle bolt designed for easy assembly and removal.

6) Options: PU/Rubber load wheels, single wheel, stainless steel, and galvanized trucks available, various fork lengths and widths, and backrests.

Parameters

Stainless Steel Manual Hydraulic Pallet Jack Parameters

Capacity Minimum height (mm) Max lift height (mm) Length(mm) Width(mm) Wheel type Load wheel size(mm) Steer wheel size(mm)
2 80 200 1150 550 Rubber/PU/Nylon 70*80 180*50
2 80 200 1220 685 Rubber/PU/Nylon 70*80 180*50
2.5 80 200 1150 550 Rubber/PU/Nylon 70*80 180*50
2.5 80 200 1220 685 Rubber/PU/Nylon 70*80 180*50
3 80 200 1150 550 Rubber/PU/Nylon 70*80 180*50
3 80 200 1220 685 Rubber/PU/Nylon 70*80 180*50
5 80 200 1220 685 Rubber/PU/Nylon 70*80 180*50
