Hand Pallet Stacker Forklift Manual Lifting Stacker

ideal and economic choice for manual transport and lifting ,with its different mast options (l 600,3000mm) and diverse lifting capacity(SOO, 1000kg) enables to deal with a large number of application in the house or any other factory. For example, with the lift capacity of 1000kg and lifting height of 1600mm, therefore the truck is an ideal and economic choice suitable […]

Share:

Introduction

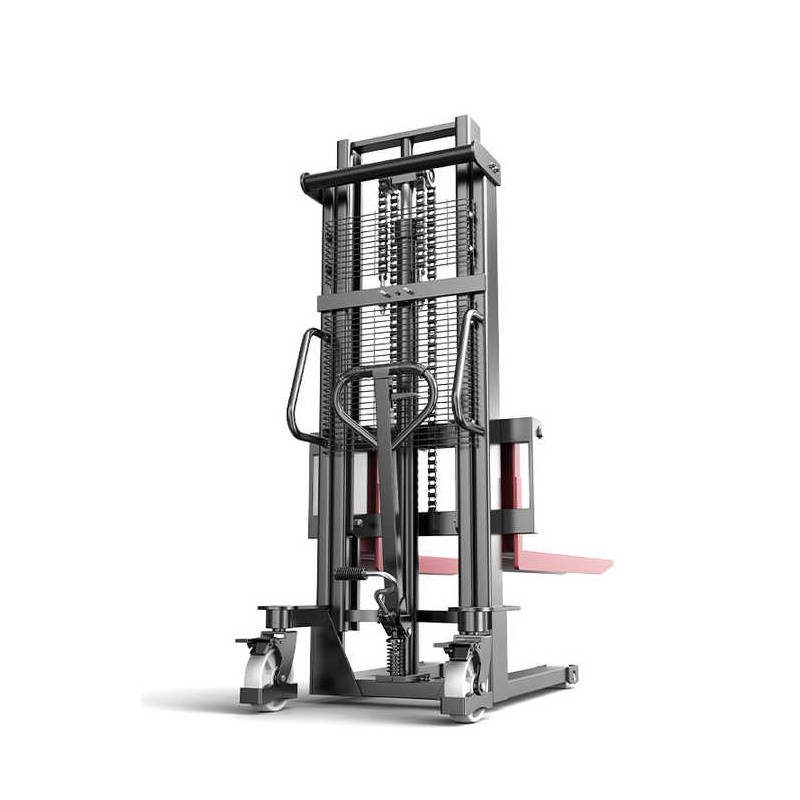

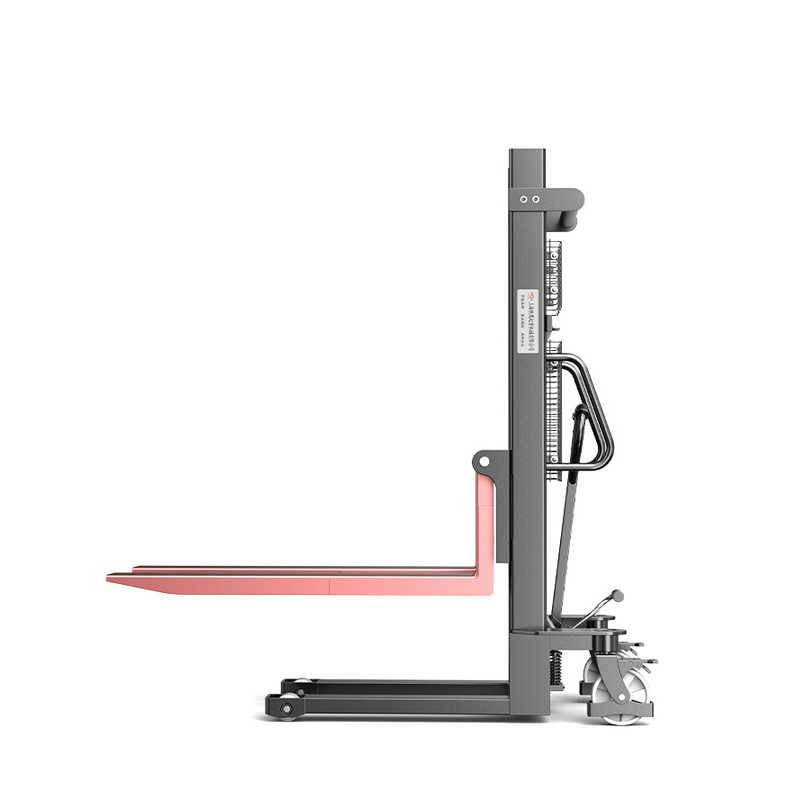

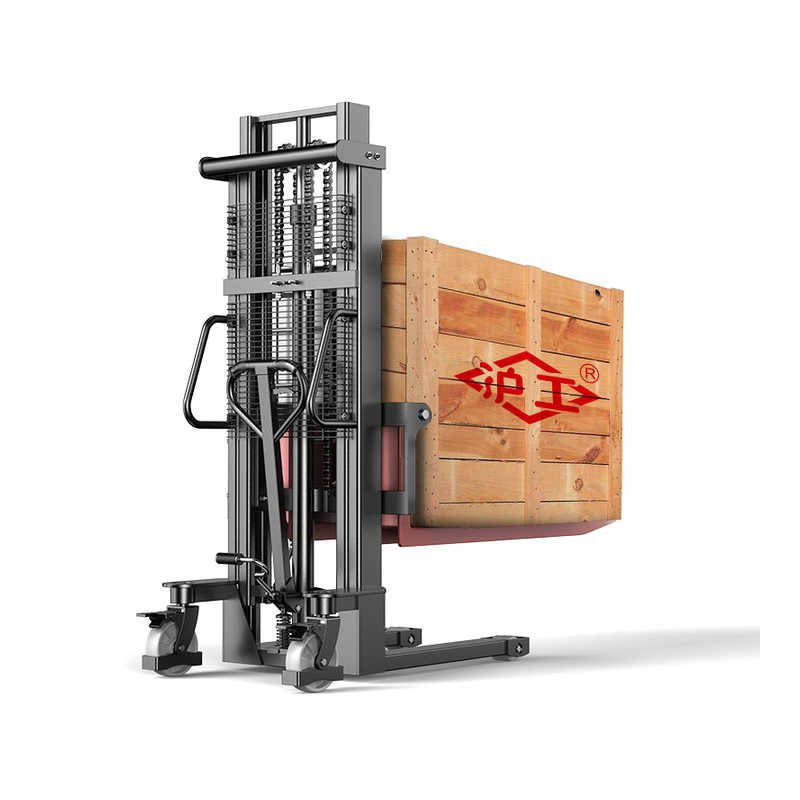

Hand Pallet Stacker Forklift Manual Lifting Stacker

ideal and economic choice for manual transport and lifting ,with its different mast options (l 600,3000mm) and diverse lifting capacity(SOO, 1000kg) enables to deal with a large number of application  in the house or any other factory. For example, with the lift capacity of 1000kg and lifting height of 1600mm, therefore the truck is an ideal and economic choice suitable for first level stacking the minimized turning radius and compact size of the truck allows it to be used in the most confined space and narrow aisle such as in stores,small warehouses and factories

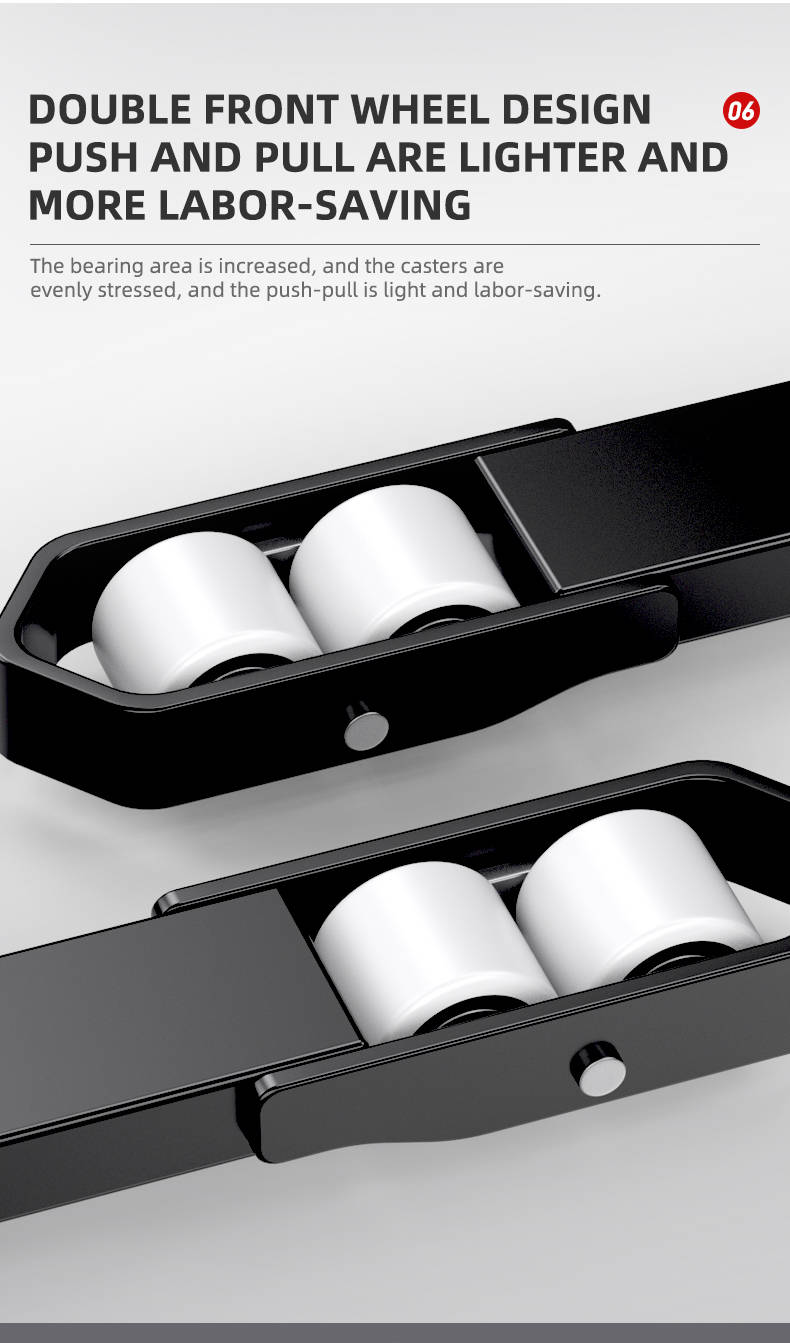

Easy and comfortable handling through ergonomically handles effortless pulling during transport with long handle.

Parameters

Hand Pallet Stacker Forklift Manual Lifting Stacker Parameters

item Model1 Model2
Rated lifting capacity(kg) 1000 2000
Max. lifting height(mm) 1600 1600
Lowered height of forks(mm) 100 100
Fork length(mm) 900 900
Adjustable width of forks(mm) 200-580 240-680
Outer width of front legs(mm) 720 740
Front wheel size(mm) 100×50 100×50
Rear wheel size(mm) 180×50 180×50
Overall size(mm) 2050x730x1380 2050x740x1480
Self weight(kg) 115 180
