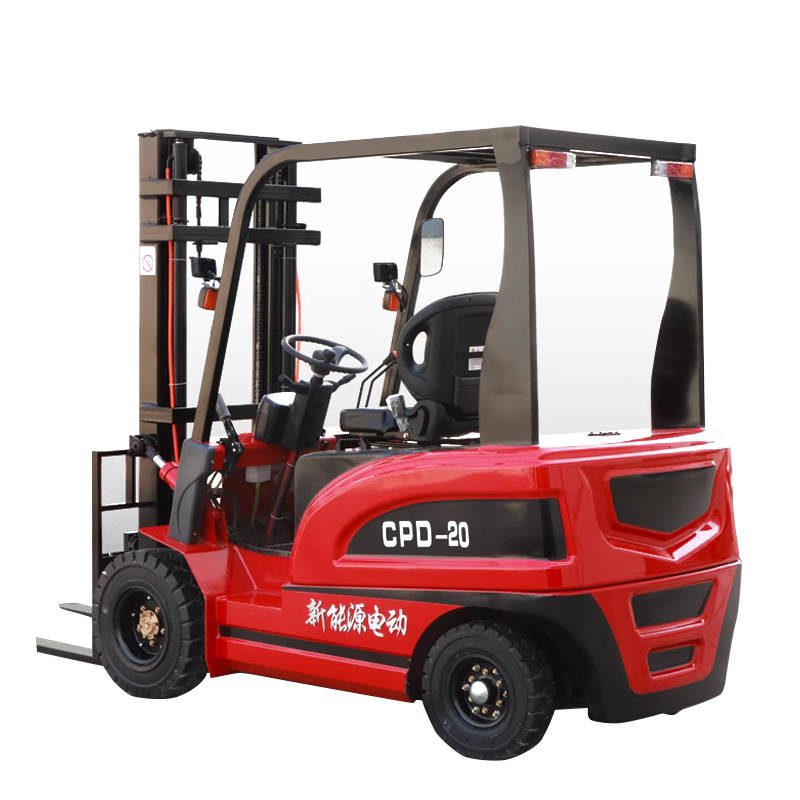

The electric four-wheel forklift is a material handling equipment powered by electricity, featuring a four-wheel design that provides high stability and load capacity. It offers advantages such as low noise, low emissions, and low maintenance costs, making it widely used in warehouses, logistics, and manufacturing industries, especially for indoor and narrow space operations.
The electric four-wheel forklift is a material handling equipment powered by electricity, featuring a four-wheel design that provides high stability and load capacity. It offers advantages such as low noise, low emissions, and low maintenance costs, making it widely used in warehouses, logistics, and manufacturing industries, especially for indoor and narrow space operations.
| Model | CPD10-D | CPD15-D | CPD20-D | CPD25-D | CPD30-D | CPD40-D | CPD45-D | CPD50-D |
| driving mode | seated | |||||||
| rated capacity（kg） | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 |
| load center distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| wheelbase(mm) | 1330 | 1550 | 1550 | 1600 | 1850 | 2040 | 2040 | 2040 |
| overall maximum lift height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| fork size(LxWxT)(mm) | 30*100*1070 | 35*100*1070 | 40*100*1070 | 40*122*1070 | 45*122*1070 | 50*145*1070 | 50*150*1070 | 55*150*1070 |
| truck body length(fork excluded)(mm) | 1980 | 2230 | 2230 | 2330 | 2547 | 2990 | 2990 | 2990 |
| truck body width(mm) | 1020 | 1096 | 1096 | 1160 | 1225 | 1585 | 1585 | 1585 |
| turning radius(mm) | 2050 | 2200 | 2280 | 2370 | 2300 | 2700 | 2700 | 2700 |
| groubd clearance under mast(mm) | 77 | 88 | 88 | 88 | 82 | 160 | 160 | 160 |
| travel speed,laden/unladen(km/h) | 10/11 | 9/10 | 9/10 | 9/10 | 10/10 | 12/13 | 12/13 | 12/13 |
| lifting speed,laden/unladen(mm/s) | 220/230 | 200/220 | 180/200 | 210/250 | 200/300 | 280/300 | 270/280 | 250/280 |
| lowering speed,laden/unladen(mm/s) | 550 | 550 | 550 | 450 | 450 | 450 | 450 | 450 |
