Full Electric Walkie Pallet Forklift Stacker

A walkie stacker is an economical and versatile material handling device with several advantages. Firstly, it offers straightforward operation, with the operator walking alongside the equipment and controlling the handling process through a push-pull handle or control panel. This simplicity makes it suitable for operators of varying skill levels. Its compact design allows it to […]

Share:

Introduction

Full Electric Walkie Pallet Forklift Stacker

A walkie stacker is an economical and versatile material handling device with several advantages. Firstly, it offers straightforward operation, with the operator walking alongside the equipment and controlling the handling process through a push-pull handle or control panel. This simplicity makes it suitable for operators of varying skill levels. Its compact design allows it to operate in narrow work aisles and limited warehouse spaces, maximizing warehouse utilization. Additionally, walkie stackers are typically cost-effective, with lower maintenance expenses, contributing to reduced operational costs.

Parameters

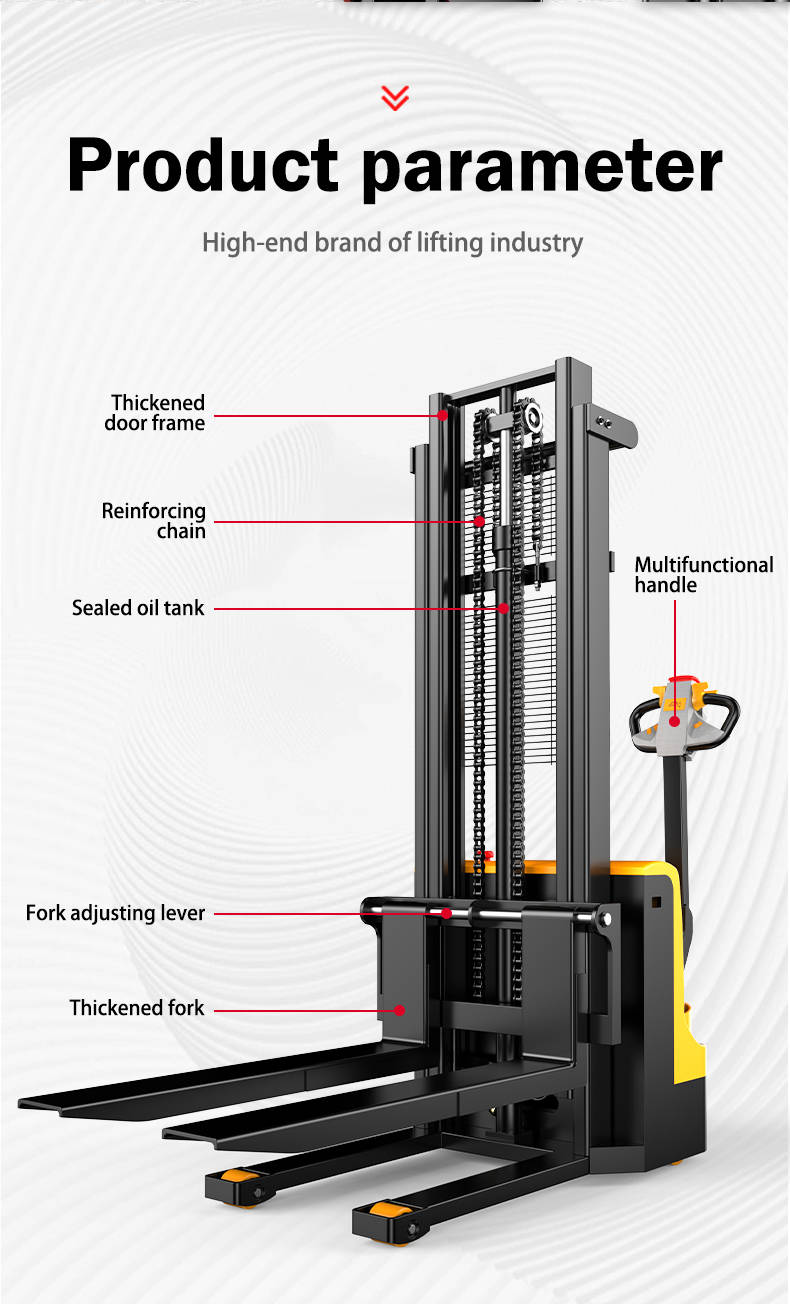

Full Electric Walkie Pallet Forklift Stacker Parameters

Model HG10 HG12 HG15
Capacity 1000(kg) 1200(kg) 1500(kg)
Load centre distance 600(mm)
Load distance, centre of drive axle to fork 770(mm)
Fork height, lowered 80(mm)
Height, mast lowered 2145/1895/2145(mm) 2140/1890/2140(mm)
Height, mast extended 2145/3100/3600(mm)
Max. lift height 1600/2500/3000(mm)
Overall length 1500(mm)
Length to face of forks 660(mm)
Overall width 1132-1532(mm)
Fork dimensions 35/100/1070(1150)(mm)
Width overall forks 200-800(mm)
