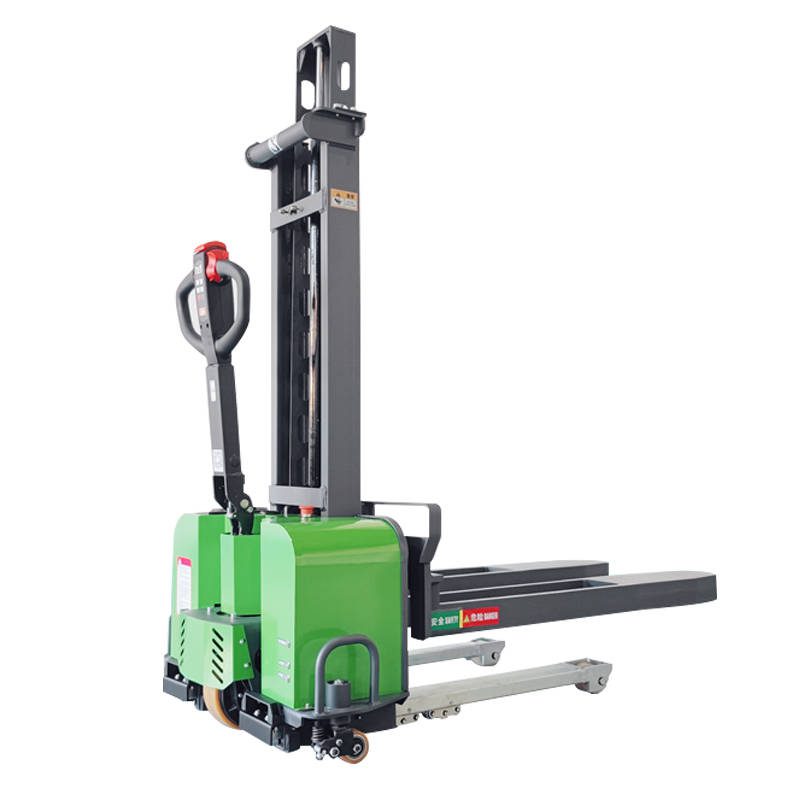

Self Loading Lifting Portable Forklift Electric Stacker

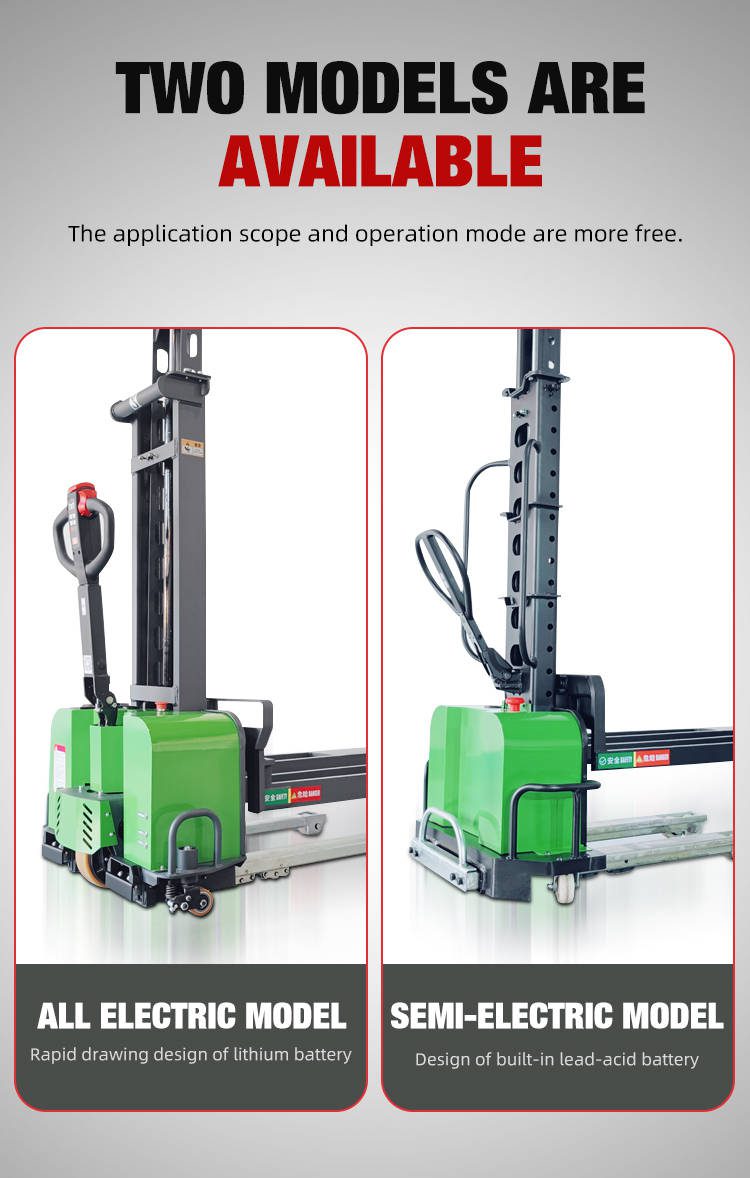

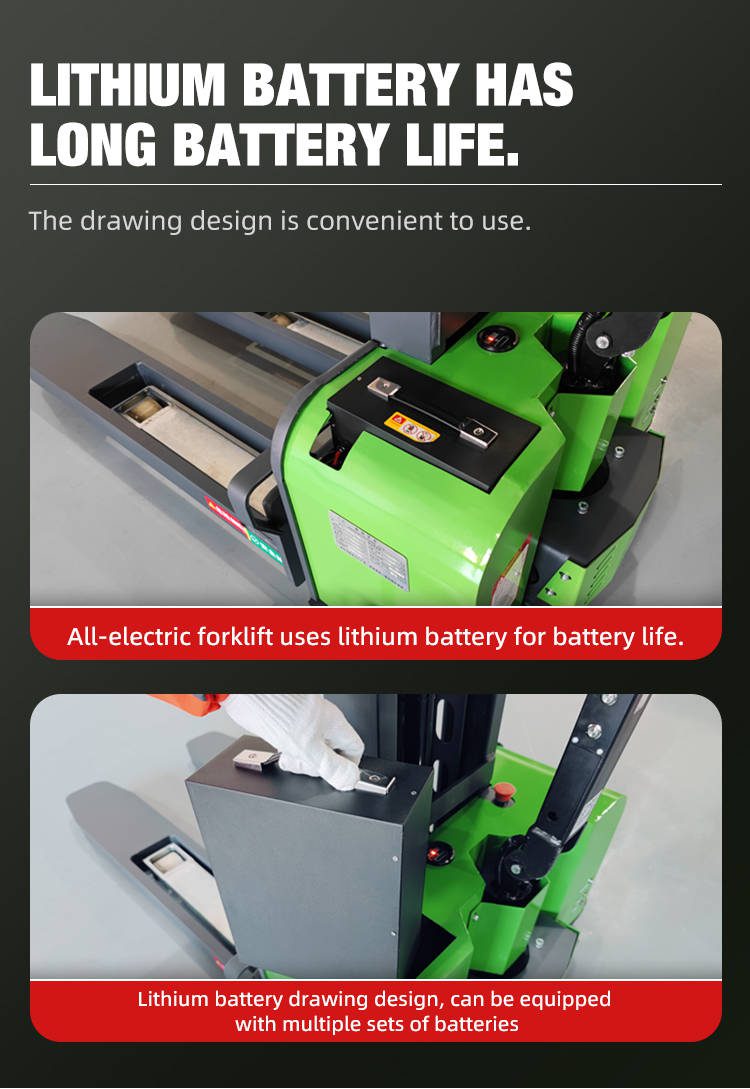

self loading stacker, full electric and electric two design options,Multi-function Intelligent Operation Handle, electric driving lift,lithium battery design,thick hydraulic oil cylinder,Large load, with the vehicle handling.

Send Email
Chat Now

Share:

Introduction

Parameters

Inquiry

Introduction

Self Loading Lifting Portable Forklift Electric Stacker

self loading stacker, full electric and electric two design options,Multi-function Intelligent Operation Handle, electric driving lift,lithium battery design,thick hydraulic oil cylinder,Large load, with the vehicle handling.

Parameters

Self Loading Lifting Portable Forklift Electric Stacker Parameters

Model SL-1 SL-2 SL-3
lifting height 1100(mm) 1300(mm) 1500(mm)
load capacity 700(kg)
load center 400(mm)
overall length of frame 1558(mm)
overall width of frame 850(mm)
mast lowered height 1430(mm) 1630(mm) 1830(mm)
max height mast lifted with backrest 2680(mm) 2880(mm) 3080(mm)
fork length 1160(mm)
fork outside width 565(mm)
fork inside width 225(mm)
rated output 0.8(kw)
self weight with battery 220(kg) 245(kg) 265(kg)
